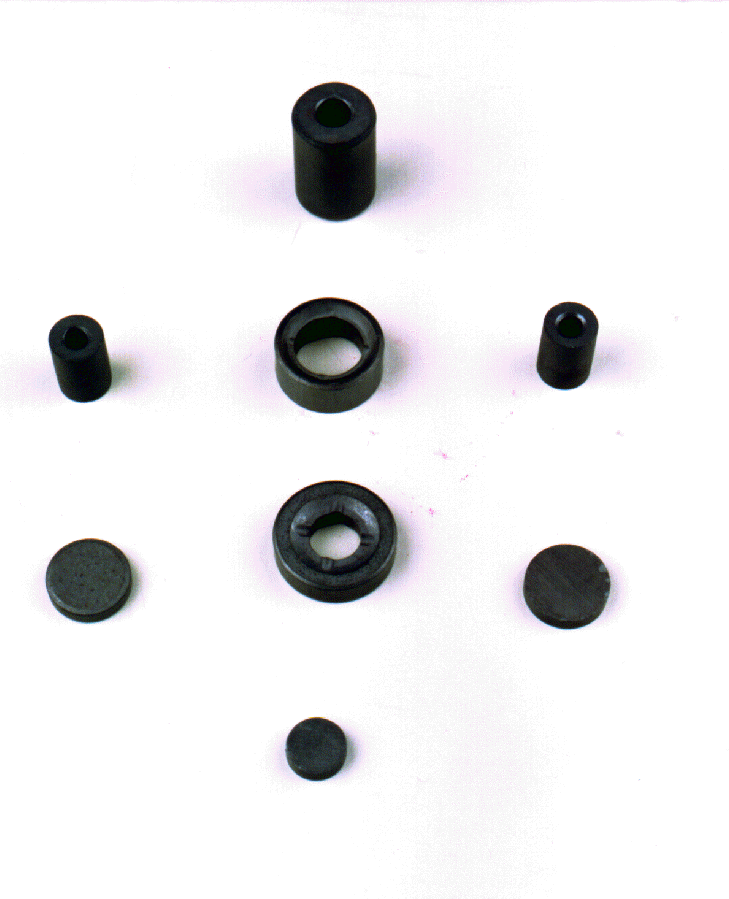

FERRITE MAGNET FOR MOTOR
|

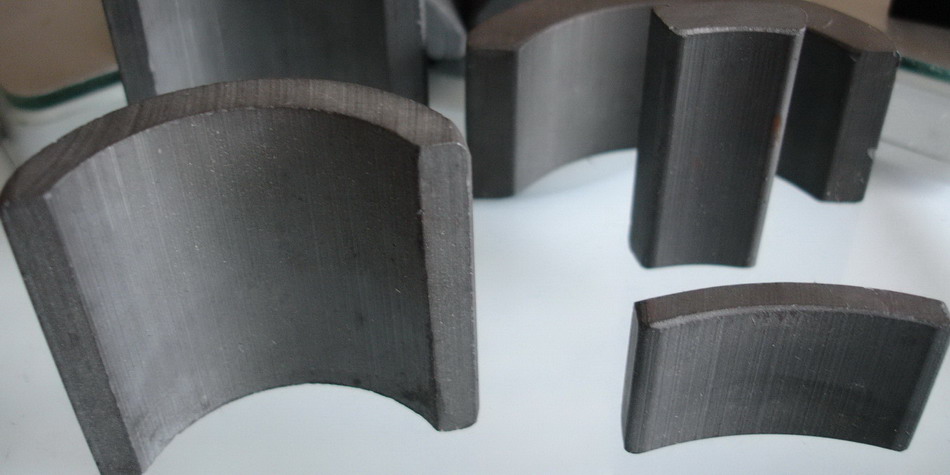

1.TILE SEGMENT MAGNET (Unit:mm)
| R18 * r12.5 * W21
* L25.5 |
R10 * r7.5 * W17
* L23 |
| R32 * r25.6 * W19 * L40 |
R10 * r7 * W14 *
L12 |
|
| 2.DIAMETER
MAGNETIZED 2 POLES. |
|

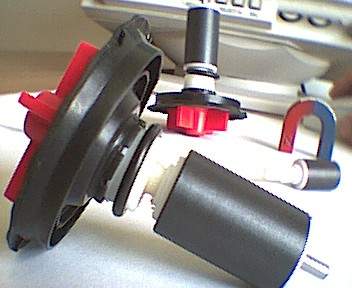

GENERAL SIZE FOR PUMP MOTOR:(Unit:mm)
|
DIA12*ID5*12 |
DIA12*ID5*18
|
DIA19*ID7*25
|
DIA19*ID7*30
|
|
3.DIAMETER
MULTIPLE pOLARIZED MAGNETIZED,2-24 pairs poles.
| ￠25*￠10*7.3mm |
Out
diameter 12 poles | | ￠23.5*￠11*8mm | Out diameter 8 poles |
| ￠23*￠17.5*30mm |
Inner
diameter 2 poles |
| ￠17.5*￠6.5*7mm |
Out diameter 12 poles |
| ￠15*￠4.2*6.5mm |
Out
diameter 10 poles | |
|

|
|
4.Surface multiple polarized magnetized.
|
|
NdFeB MAGNET FOR
MOTOR
BOND NdFeB FOR MOTOR
SINTERED NdFeB FOR MOTOR
|
